Making 'dumb' Dishwashers and Washing Machines Smart: Alerts When the Dishes and Clothes Are Cleaned

I love the idea of everything in my home being able to communicate with each other. Thanks to Home Assistant I already have a lot of things talking to each other.
Making 'dumb' Dishwashers and Washing Machines Smart: Alerts When the Dishes and Clothes Are Cleaned

This is going to solve a massive first world problem. Or maybe it won't. I'll let you decide. The latest trend is for every device in your home to be connected to the internet. 'The internet of things'. I can't (or don't want to) replace the dishwasher in my apartment (I'm a renter). I need to use other tools that will allow me to monitor the state of my dishwasher, and then use that information to tell me when the dishes are clean, so I don't forget to empty it.

I don't want to fork out thousands of dollars for a washing machine that can connect to a smart phone app, that will most likely be abandoned at some point in the future. Looking at you, Samsung.

Ingredients

I'll be using the following hardware and software for this. Feel free to replace it with whatever works best for you. You may not have Z-wave, so any power monitor and contact sensor should work, as long as the end results match up.

  • Home Automation Software - I'll be using Home Assistant, but other Home Automation software can be used as well, just check your poison of choice documentation.
  • Z-wave Power Monitor / Switch - I'll be using the Aeotec Smart Switch
  • Z-wave Door/Window Sensor - I'll be using a Fibaro FGK101
The Rented Smart Home - Smart Plugs
Plugs that can automate your appliances have been around for years. From simple timers, to digital ones that can even account for what day of week it is. Now with home automation getting more ground, the next generation of smart plugs allow more control and functions than ever before.

Monitoring The State

The first step is to decide how you'll be monitoring the state of the machine. I like to use z-wave power switches, as you can easily tell when a machine is in use by how much power it is drawing. If no power is being used by the washing machine or dishwasher, then they're off and not in use. The good thing using the Aeotec Smart Switch is it comes built-in with power level monitoring, and can easily be connected to a Z-wave Flood Sensor, so that if a flood is detected power is immediately cut.

I want to be alerted when either my washing machine or dishwasher have completed their cycle, but only if they haven't already been emptied. There's no point in sending myself or my fiancé an alert when we have already taken out the washing or put away the dishes.

CTA Image

Together with Rohan Karamandi, hear me break down the latest Home Assistant release and talk with other users of Home Assistant across the open-source community.

Listen Now

Dishwasher

First up the dishwasher. Once running, the dishwasher will draw power. Once finished, it will remain in a "standby" state until you open the dishwasher and turn it off. This means I can purely use the power level to determine if the dishwasher has been emptied or not. Once the dishwasher is finished, as long as someone opens the dishwasher and turns off the power, I'll be able to see the power drop to zero, and mark the dishwasher as dirty again.

Washing Machine

Unfortunately my washing machine is a bit smarter. Once the washing machine has finished, it will "beep" to let anyone within earshot know that the cycle is complete. After a couple of minutes, it will then turn itself off so it doesn't waste standby power. This throws a slight spanner into the works, as I now won't be able to tell if the washing machine is full and ready to have clothes taken out of it.

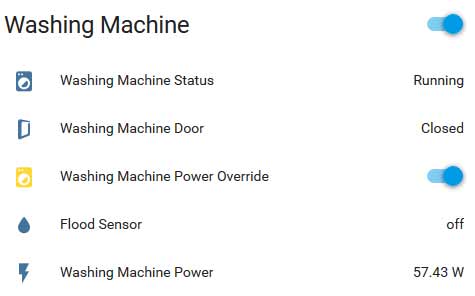

For the washing machine, I'll use a combination of the power monitor and a Fibaro Door/Window Sensor. Once the washing machine has stopped running, I won't reset the washing machine until the door has been opened, as detected by the door sensor.

Before using a smart switch or plugin energy monitor on a high energy device (such as a washing machine/dryer/dishwasher), always check how much power your machine will draw from your smart switch/energy monitor.

See my notes at the end of this post for more details.

Defining the Stages

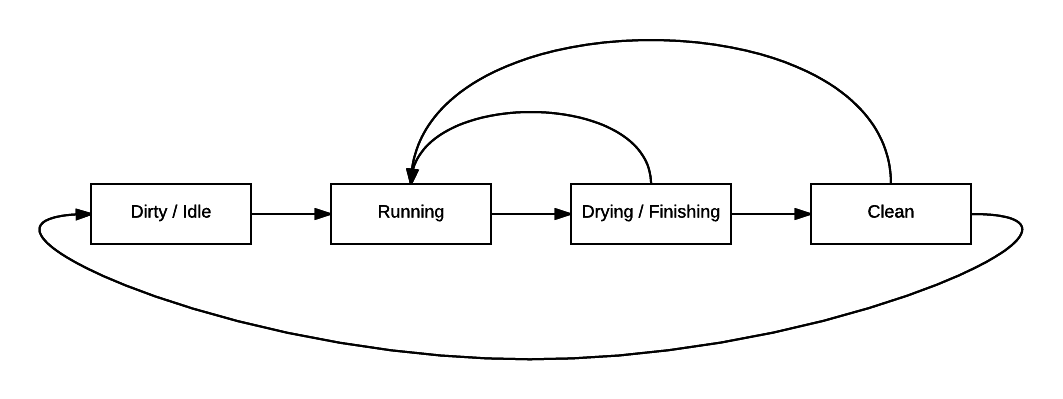

It can be a bit tricky using power levels alone to detect where in the cycle your machine is up-to. During the spin cycle, the power level may drop for several minutes and then pickup again. You don't want to be alerted each time this happens.

To solve this, I'll be using Home Assistant's input_select component. This will allow me to define several states that the machines could be in. First, let's define them.

Dishwasher

Dirty The default state of the dishwasher. Dishes will be packed into the dishwasher until it is full and turned on.
Running The dishwasher is turned on and cleaning the dishes.
Drying The power level has dropped, and the dishwasher can now be considered to be "drying" the dishes.
Clean The power level has dropped for a few consistent minutes, and is now drawing "standby" power. Once power returns to 0, we'll return back to the "Dirty" state.

Washing Machine

Idle The default state of the washing machine. The washing machine is off and clothes have been unpacked.
Running The washing machine is turned on and cleaning the clothes.
Finishing The power level has dropped, and the washing machine will be finishing soon.
Clean The power level has dropped for a few consistent minutes. Once the door opens, we'll return back to the "Idle" state.

Transitioning Between Stages

Because power levels can go up and down, we need to make sure our system transitions between each stage correctly. That's where the power of using a dropdown comes in. Let's define some rules for how our machines may change states.

Why is this important? We don't want to get spammed when the power goes up and down. Using the flow above, we can use delays to ensure that the machine is in the right state. Let's say the Washing Machine is 'Running', and the power level drops. Once the power level drops, we'll move it into the 'Finishing' stage. Once in the 'Finishing' stage, we'll wait a certain amount of time before moving into the 'Clean' state and sending our notifications. However, if the power level increases again (such as the spin cycle starting again), then we'll go back to the 'Running' stage, so the process can repeat.

The same logic applies for the dishwasher.

So how can we achieve this in Home Assistant? First we need to setup our input_select dropdowns.

#configuration.yaml
input_select:
  dishwasher_status:
    name: Dishwasher Status
    options:
      - Dirty
      - Running
      - Drying
      - Clean
    initial: Dirty
  washing_machine_status:
    name: Washing Machine Status
    options:
      - Idle
      - Running
      - Finishing
      - Clean
    initial: Idle

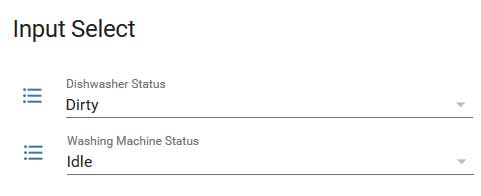

This will create two dropdown elements in Home Assistant that look like these:

Adding the Logic

Now that we have each phase of the machine cycles setup in Home Assistant, it's time to automate the transitions between each stage. As I'm using a z-wave smart switch, we can use their power levels for this. Home Assistant makes these available to us as additional sensors. We're looking for the power sensors.

Once you've found the entity that is tracking power consumption, lets add some automations to Home Assistant to move through the stages according to the diagram above.

First, the dishwasher is the easiest, as we will only be looking at the power levels.

#automation.yaml
# When we detect power being drawn from the dishwasher,
# mark the dishwasher as using power

- alias: Set dishwasher active when power detected
  trigger:
    - platform: numeric_state
      entity_id: sensor.aeotec_smart_energy_switch_power_16_8
      above: 10
  condition:
    condition: or
    conditions:
      - condition: state
        entity_id: input_select.dishwasher_status
        state: Dirty
      - condition: state
        entity_id: input_select.dishwasher_status
        state: Clean
      - condition: state
        entity_id: input_select.dishwasher_status
        state: Drying
  action:
    - service: input_select.select_option
      data:
        entity_id: input_select.dishwasher_status
        option: Running

# When the power level drops below 10, and the Dishwasher is set to
# the 'Running' state, mark the Dishwasher as Finished

- alias: Set dishwasher drying when power drops
  trigger:
    - platform: numeric_state
      entity_id: sensor.aeotec_smart_energy_switch_power_16_8
      below: 10
  condition:
    condition: and
    conditions:
      - condition: state
        entity_id: input_select.dishwasher_status
        state: Running
  action:
    - service: input_select.select_option
      data:
        entity_id: input_select.dishwasher_status
        option: Drying

# Once the dishwasher status has been 'Drying' for 30 minutes, mark the
# dishwasher as clean

- alias: Set dishwasher clean
  trigger:
    - platform: state
      entity_id: input_select.dishwasher_status
      to: Drying
      for:
        minutes: 15
  condition:
    condition: and
    conditions:
      - condition: state
        entity_id: input_select.dishwasher_status
        state: Drying
  action:
    - service: input_select.select_option
      data:
        entity_id: input_select.dishwasher_status
        option: Clean

# When the power drops and the dishwasher is Clean or Drying, someone has
# turned the Dishwasher off and emptied it. We should do this when the state
# of the Dishwasher is clean or Finishing, just incase someone opens the
# Dishwasher before the 30 minute timeout has been reached.

- alias: Set Dishwasher dirty when power off
  trigger:
    - platform: numeric_state
      entity_id: sensor.aeotec_smart_energy_switch_power_16_8
      below: 1
  condition:
    condition: and
    conditions:
      - condition: numeric_state
        entity_id: sensor.aeotec_smart_energy_switch_power_16_8
        below: 1
      - condition: or
        conditions:
        - condition: state
          entity_id: input_select.dishwasher_status
          state: Clean
        - condition: state
          entity_id: input_select.dishwasher_status
          state: Drying
  action:
    - service: input_select.select_option
      data:
        entity_id: input_select.dishwasher_status
        option: Dirty

These automations will change the input_select component to the value according to where the dishwasher is up to. Once someone turns the dishwasher off, the power will drop below 1 (aka zero) and the dishwasher will be marked as clean.

The washing machine uses some similar logic. Which you can see below. However, we'll wait for the door to open before we change the status, as it will turn itself off after a timeout.

#automation.yaml
# When power is detected, and the washing machine is not in
# the Running state, change the status of the washing machine
# to Running.
# The status check will ensure we don't try to put the state
# to Running each time the power level changes, and we're already
# in the Running state.

- alias: Set washing machine active when power detected
  trigger:
    - platform: numeric_state
      entity_id: sensor.aeotec_smart_energy_switch_power_25_4
      above: 10
  condition:
    condition: or
    conditions:
      - condition: state
        entity_id: sensor.washing_machine_status
        state: Idle
      - condition: state
        entity_id: sensor.washing_machine_status
        state: Clean
      - condition: state
        entity_id: sensor.washing_machine_status
        state: Finishing
  action:
    - service: input_select.select_option
      data:
        entity_id: input_select.washing_machine_status
        option: Running

# When the power drops, move the state of the washing machine to
# Finishing.

- alias: Set washing machine finished when power drops
  trigger:
    - platform: numeric_state
      entity_id: sensor.aeotec_smart_energy_switch_power_25_4
      below: 6
  condition:
    condition: and
    conditions:
      - condition: state
        entity_id: input_select.washing_machine_status
        state: Running
  action:
    - service: input_select.select_option
      data:
        entity_id: input_select.washing_machine_status
        option: Finishing

# Wait 8 minutes for us to be in the Finishing state before we
# decide the washing machine has finished. This way, if the
# washing machine is in between cycles and the power drops, we
# won't mark the washing machine cycle as finished too early.

- alias: Set washing machine clean after timeout
  trigger:
    - platform: state
      entity_id: input_select.washing_machine_status
      to: Finishing
      for:
        minutes: 8
  condition:
    condition: and
    conditions:
      - condition: state
        entity_id: input_select.washing_machine_status
        state: Finishing
  action:
    - service: input_select.select_option
      data:
        entity_id: input_select.washing_machine_status
        option: Clean

# When we open the washing machine door, reset the status back to
# idle, so we don't spam people that the washing machine has
# finished, and someone has already emptied it
- alias: Set washing machine dirty when door opens
  trigger:
    # I've setup a template sensor to change make the binary_sensor report open and closed
    # instead of 1 and 0
    - platform: state
      entity_id: input_select.washingmachine_door_status
      to: 'Open'
  condition:
    condition: and
    conditions:
      - condition: state
        entity_id: input_select.washing_machine_status
        state: Clean
  action:
    - service: input_select.select_option
      data:
        entity_id: input_select.washing_machine_status
        option: Idle

Sending The Alerts

So now the fun part, we have Home Assistant reporting each stage of the washing machine/dishwasher cycle. It's time to add some alerts around these. A simple alert when the dishwasher is clean looks like this:

#automation.yaml
- alias: Send alert when dishwasher is clean
  trigger:
    - platform: state
      entity_id: input_select.dishwasher_status
      to: Clean
  condition:
    condition: and
    conditions:
      - condition: state
        entity_id: input_select.dishwasher_status
        state: Clean
  action:
    - service: notify.phil
      data:
        message: 'The Dishwasher has finished and is ready to be emptied!'
        title: 'Dishwasher Update'

That will send an alert to my phone via Pushbullet when the dishwasher has finished. However, that's not always ideal.

  • If I turn on the dishwasher then go out, I will receive an alert on my phone when I am out, and forget about the dishes.
  • If I turn on the dishwasher at night before bed, I'll get an alert when I'm asleep.
  • This will only send an alert to me. What if I am out, but my fiancé is home, it would be better to send her the alert so she can empty the dishwasher.

Making The Alert Smarter

So let's see if we can make this notification more smart. Home Assistant will know who's home and what time it is, so let's update the automation to include the following rules:

  1. Don't send an alert if it is after 10:30pm, or before 8:30am.
  2. Don't send an alert unless someone is home. No point alerting us if no one is home to unpack the dishwasher.
  3. If the dishwasher is clean, and the time ticks past 8:30am, and people are home, alert them the dishwasher is ready.
  4. Only send an alert to the people who are home. Don't bother anyone who isn't at home.
  5. If the dishwasher is clean, and someone arrives home, send everyone who is home an alert, but only if the alert wasn't sent in the last thirty minutes.

Let's go ahead and make some adjustments to that notification above. First let's apply rule 1 and 2.

#automation.yaml
- alias: Send alert when dishwasher is clean
  trigger:
    - platform: state
      entity_id: input_select.dishwasher_status
      to: Clean
  condition:
    condition: and
    conditions:
      - condition: time
        before: '22:30:00'
        after: '08:29:00'
      - condition: state
        entity_id: group.people
        state: 'home'
      - condition: state
        entity_id: input_select.dishwasher_status
        state: Clean
  action:
    - service: notify.phil
      data:
        message: 'The Dishwasher has finished and is ready to be emptied!'
        title: 'Dishwasher Update'

We can easily add a time trigger now so that I get an alert at 8:30am if the dishwasher is clean.

#automation.yaml
- alias: Send alert when dishwasher is clean
  trigger:
    - platform: state
      entity_id: input_select.dishwasher_status
      to: Clean
    - platform: time
      after: '08:30:00'
  condition:
    condition: and
    conditions:
      - condition: time
        before: '22:30:00'
        after: '08:29:00'
      - condition: state
        entity_id: group.people
        state: 'home'
      - condition: state
        entity_id: input_select.dishwasher_status
        state: Clean
  action:
    - service: notify.phil
      data:
        message: 'The Dishwasher has finished and is ready to be emptied!'
        title: 'Dishwasher Update'

Now the fun part, rule 4. In Home Assistant, we can use a Notify Group to dictate who will get the alert. I'll setup three groups. One which will send an alert just to me, one which will send an alert just to my fiancé, and finally one which will send both of us an alert. Let's go ahead, and change the action part of our alert now.

- alias: Send alert when dishwasher is clean
  trigger:
    - platform: state
      entity_id: input_select.dishwasher_status
      to: Clean
    - platform: time
      after: '08:30:00'
  condition:
    condition: and
    conditions:
      - condition: time
        before: '22:30:00'
        after: '08:29:00'
      - condition: state
        entity_id: group.people
        state: 'home'
      - condition: state
        entity_id: input_select.dishwasher_status
        state: Clean
  action:
    - service_template: >
        {% if (is_state('device_tracker.phil', 'home')) and (is_state('device_tracker.helen', 'home'))  %}
          notify.phil_and_helen
        {% elif is_state('device_tracker.phil', 'home') %}
          notify.phil
        {% elif is_state('device_tracker.helen', 'home') %}
          notify.helen
        {% endif %}
      data:
        message: 'The Dishwasher has finished and is ready to be emptied!'
        title: 'Dishwasher Update'

Finally rule 5. We'll use another for delay, of 10 minutes. This makes sure we've been home for a few minutes to put things down before we're reminded to empty the dishwasher. It also gives the other person time to come inside from collecting the mail, or chatting up a storm with the neighbours, before the alert is sent.

We'll use a template condition, to make sure that the alert isn't sent multiple times. This is important. If my device is marked as home first then two minutes later my fiancé is marked as home, in ten minutes and twelve minutes the alert will be sent to both of us! Which might get annoying, very quickly.

- alias: Send alert when dishwasher is clean
  trigger:
    - platform: state
      entity_id: input_select.dishwasher_status
      to: Clean
    - platform: time
      after: '08:30:00'
    - platform: state
      entity_id: sensor.helen_status
      to: 'Home'
      for:
        minutes: 10
    - platform: state
      entity_id: sensor.phil_status
      to: 'Home'
      for:
        minutes: 10
  condition:
    condition: and
    conditions:
      - condition: time
        before: '22:30:00'
        after: '08:29:00'
      - condition: state
        entity_id: group.people
        state: 'home'
      - condition: state
        entity_id: input_select.dishwasher_status
        state: Clean
      # Don't send this alert if it was last triggered less than 30 minutes ago (1,800 seconds)
      - condition: template
        value_template: >
          {% if states.automation.send_alert_when_dishwasher_is_clean.last_triggered is not none %}
            {% if as_timestamp(now()) | int   -  as_timestamp(states.automation.send_alert_when_dishwasher_is_clean.attributes.last_triggered) | int > 3600 %} true {% else %} false
            {% endif %}
          {% else %}
          false
          {% endif %}
  action:
    - service_template: >
        {% if (is_state('device_tracker.phil', 'home')) and (is_state('device_tracker.helen', 'home'))  %}
          notify.phil_and_helen
        {% elif is_state('device_tracker.phil', 'home') %}
          notify.phil
        {% elif is_state('device_tracker.helen', 'home') %}
          notify.helen
        {% endif %}
      data:
        message: 'The Dishwasher has finished and is ready to be emptied!'
        title: 'Dishwasher Update'

The same logic can then be applied to our washing machine alert.

- alias: Send alert when washing machine is finished
  trigger:
    - platform: state
      entity_id: sensor.washing_machine_status
      to: Clean
      for:
        minutes: 1
    - platform: state
      entity_id: device_tracker.helen
      to: 'home'
      for:
        minutes: 2
    - platform: state
      entity_id: device_tracker.phil
      to: 'home'
      for:
        minutes: 2
    - platform: time
      after: '08:45:00'
  condition:
    condition: and
    conditions:
      - condition: time
        before: '22:30:00'
        after: '08:30:00'
      - condition: state
        entity_id: group.people
        state: 'home'
      - condition: state
        entity_id: input_select.washing_machine_status
        state: Clean
      - condition: template
        value_template: >
          {% if states.automation.send_alert_when_washing_machine_is_finished.last_triggered is not none %}
            {% if as_timestamp(now()) | int   -  as_timestamp(states.automation.send_alert_when_washing_machine_is_finished.attributes.last_triggered) | int > 1800 %} true {% else %} false
            {% endif %}
          {% else %}
          false
          {% endif %}
  action:
    - service_template: >
        {% if (is_state('device_tracker.phil', 'home')) and (is_state('device_tracker.helen', 'home'))  %}
          notify.phil_and_helen
        {% elif is_state('device_tracker.phil', 'home') %}
          notify.phil
        {% elif is_state('device_tracker.helen', 'home') %}
          notify.helen
        {% endif %}
      data:
        message: 'Hey, the washing machine has finished and is ready to be emptied'
        title: 'Washing Machine'

Home Assistant Nuances

If you're using Home Assistant, there's a few things you can do to make things look more user-friendly on the front-end, and a couple of things to watch out for.

Z-wave Polling

In order for your z-wave power modules to report updated power levels, you may need to adjust your polling settings. I have mine set as following.

zwave:
  device_config:
    sensor.aeotec_smart_energy_switch_power_25_4:
      polling_intensity: 1
    sensor.aeotec_smart_energy_switch_power_16_8:
      polling_intensity: 1

Reporting Open/Closed Status

I'm using a Template Sensor to make the door status easier to use. If you prefer to use the same, here's how I do it.

#automation.yaml
sensor:
  - platform: template
    sensors:
      washingmachine_door_status:
        value_template: '{% if states.binary_sensor.fibaro_system_fgk10x_door_opening_sensor_sensor_27_0 %}
          {% if states.binary_sensor.fibaro_system_fgk10x_door_opening_sensor_sensor_27_0.state == "on" %}
            Open
          {% else %}
            Closed
          {% endif %}
          {% else %}
          n/a
          {% endif %}'
        friendly_name: 'Washing Machine Door'

How it Looks

The dropdown menu for the status can get a bit clunky, so I'm also using two more Template Sensors to display a read-only view of the status on the Home Assistant webpage.

sensor:
  - platform: template
    sensors:
      washing_machine_status:
        value_template: '{{ states.input_select.washing_machine_status.state}}'
        friendly_name: 'Washing Machine Status'
      dishwasher_status:
        value_template: '{{ states.input_select.dishwasher_status.state}}'
        friendly_name: 'Dishwasher Status'

#customize.yaml

Using groups, Here's how Home Assistant renders these cards.

Smart Switches and Power Usage

Devices with spinning parts (ie dishwashers and washing machines) may draw a high amount of power. Luckily for me, I have modern appliances which don't draw too much power.

Before you plug your washing machine or dishwasher into a smart switch, always check the maximum power draw supported by your smart switch.

In my case, I am using an Aeotec Smart Switch 6 for my washing machine. According to the specs, the Australian version can handle up-to 10 amps of power usage (the US version can handle 15 amps at 120 volts). Looking at my washing machine manual, the maximum power is used when "washing and heating", which is rated at 2,000 watts. Using a simple online calculator, the maximum amps drawn from my washing machine is 8.69 amps, which is just under the 10 amps supported by the smart switch.

My washing machine is a newer model, with an energy star rating. If your washing machine is older, it may draw more power than a smart switch can handle. You may risk burning out the smart switch, or under-powering your machine and causing damage.

See the products I use in my smart home

Check out my Kit

Wrapping Up

Using some smart switches, and door/window sensors we've now integrated two commonly used household appliances into our smart home. I haven't had to fork out thousands for the latest appliances with a smart phone app, and even better my home automation controller, Home Assistant is responsible for watching everything.

Using the information already known by Home Assistant, notifications are sent only when required and in a way that don't spam our phones every-time something happens.

There's a heap more applications you can use for smart switches, or door/window sensors. What cool automations have you created with these? I'd love to hear them.

Subscribe to stay updated.

Don't miss anything. Get all the latest posts delivered straight to your inbox. It's free!
Great! Check your inbox and click the link to confirm your subscription.
Error! Please enter a valid email address!
